プロダクト細部
起源の場所: バオジ,中国
ブランド名: LIHUA
証明: ISO9001, TUV etc.
モデル番号: LH-TH
支払及び船積みの言葉
最小注文数量: 1個
価格: US dollar $15/kg--US dollar $35/kg
パッケージの詳細: 輸出のための合板箱
受渡し時間: 5-25の仕事日
支払条件: L/C,T/T,ウェスタンユニオン
供給の能力: 1ヶ月あたりの5000キログラム
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |

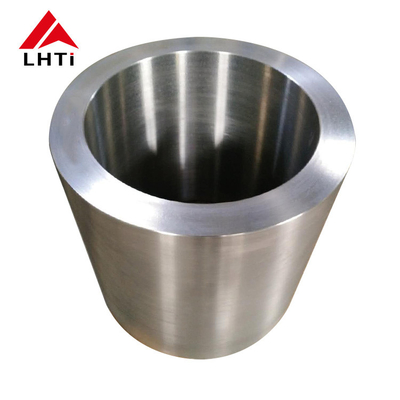

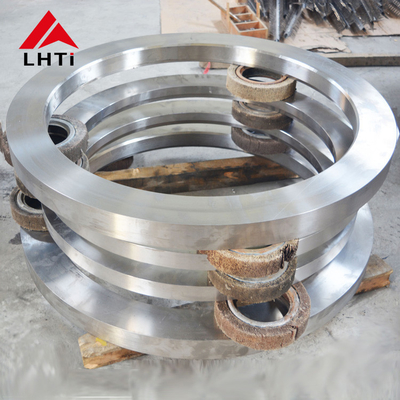

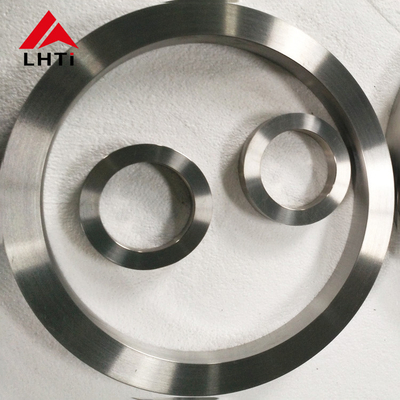

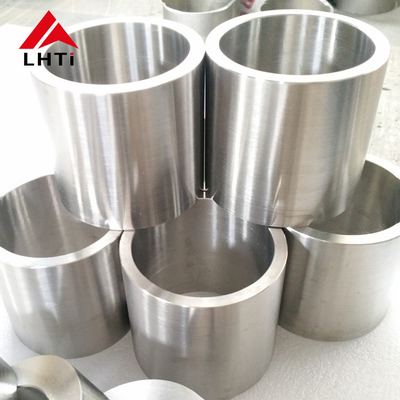

GR5 Forging Titanium Alloy Ring ASTM B381
Astm B381 Titanium Forgings Parts & Components:
In recent years, there has been a significant rise in the demand for titanium and titanium alloys, primarily used in aircraft and aerospace applications. The price of commercially pure titanium (CP) has risen sharply since 2003 to 2014, from $15.00 per lb to $30.00 per lb. It is an extremely light weight and high strength material. Certain alloys like 6AL-4v, 8Mn, 8Al-1MO-1V, 5Al-2.5Sn,and 6Al-2Sn-4Zr-2Mo, are also used in Aircraft engine applications due the ability of these alloys to with stand high temperature environments.
Titanium forgings that are used with Commercially Pure Alloys (Grade 1 ,Grade 2, Grade 3, Grade 4) are primarily used in Aircraft Frame applications.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
