プロダクト細部
Place of Origin: China
ブランド名: LHTi
証明: ISO9001:2015; TUV; SGS;BV
Model Number: Titanium Rod
支払及び船積みの言葉
Minimum Order Quantity: 30 kg
価格: $20.00~$30.00/kg
Packaging Details: Plywood box with soft foam for additional protection,Standard Export package Titanium bar/rod will be packed in the plastic first and then use wooden case,wooden case or according to your order.
Delivery Time: 10-25 work days
Payment Terms: T/T, MoneyGram, L/C, Western Union, Paypal
Supply Ability: 300000 kg per month
Diameter: |
3mm-350mm |
Material: |
Pure titanium |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed; M |
MOQ: |
30 kg |
Packing: |
Standard Export Packing |
Diameter: |
3mm-350mm |
Material: |
Pure titanium |
Surface: |
Bright,Polished,Pickling |
Condition: |
Annealed; M |
MOQ: |
30 kg |
Packing: |
Standard Export Packing |
Ti-6al-7nb Titanium Bar For Surgical Implant Titanium Round Rod
Application:Industry,Aerospace
Gr9 Ti-3Al-2.5V Titanium Bar can be used at higher temperatures than Grades 1 through 4. Grade 9 titanium has good cold rolling properties.Ti-3Al-2.5V (Grade 9) is a near α-type titanium alloy. The strength of Titanium 9 is between Grade 4 and Grade 5. It has excellent corrosion resistance for aerospace and industrial applications.
Titanium Ti3Al2.5V (grade 9) or more simply known as Ti-3-2.5 is commonly grouped with the commercially pure grades due to it's ability to be cold rolled. The strength of Ti3al2.5V (Ti-3-2.5) falls between Grade 4 and Grade 5. However Ti3Al2.5V (grade 9) can be used at higher temperatures than Grade 1, Grade 2, Grade 3 and Grade 4.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

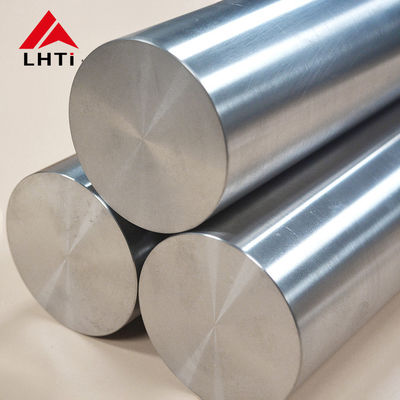

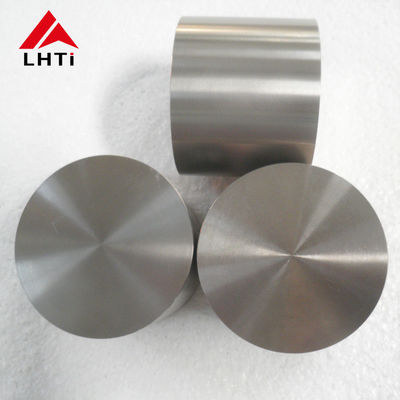

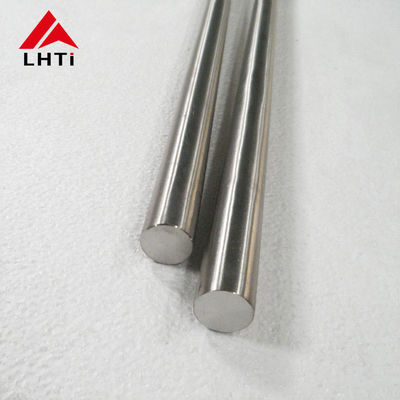

Product picture:
