プロダクト細部
起源の場所: バオジ,中国
ブランド名: LIHUA
証明: ISO9001, TUV etc.
モデル番号: LH-TH
支払及び船積みの言葉
最小注文数量: 1個
価格: US dollar $15/kg--US dollar $35/kg
パッケージの詳細: 輸出のための合板箱
受渡し時間: 5-25の仕事日
支払条件: L/C,T/T,ウェスタンユニオン
供給の能力: 1ヶ月あたりの5000キログラム
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |

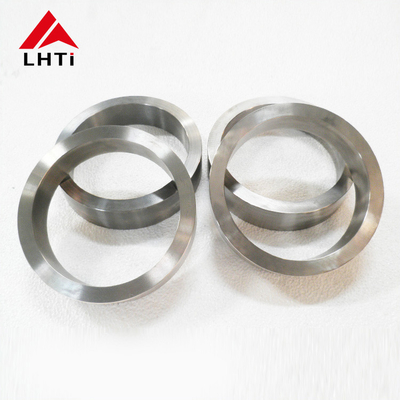

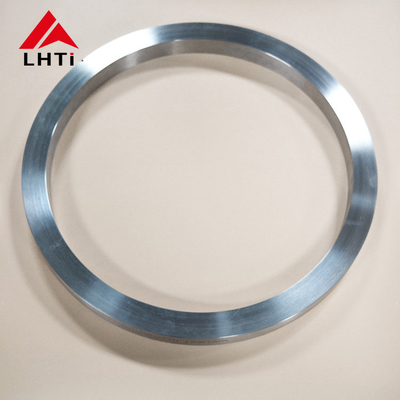

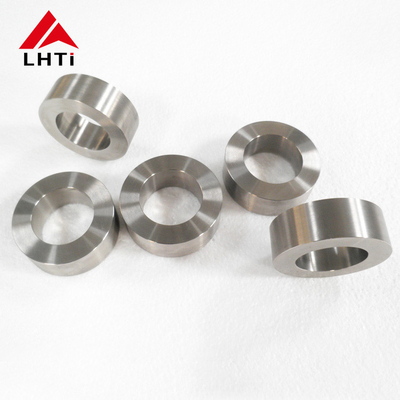

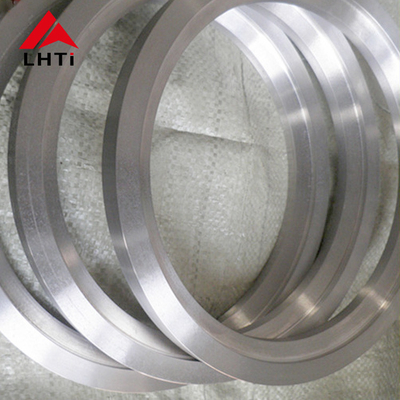

Gr7 Titanium Forged Ring Titanium Forgings
Surface treatment: polishing, chamfering.
application area:Aerospace, aviation, military industry,
light industry, chemical industry, textile, medical,
petrochemical and other fields.
Gr7 Titanium Forged Ring Production process
Forging, die forging, rotary forging, precision forging and welding
Testing
Tensile strength test, hardness test, chemical composition test, ultrasonic test, radiographic test, penetration coloring test.
Surface
Surface treatment: polishing, chamfering.
Surface quality: the surface roughness Ra value of the two end faces shall not be greater than 3.2l μ m (subject to the requirements of ultrasonic inspection), the surface roughness Ra value of the inner and outer sides shall not be greater than 12.5 μ m (Ra value shall not be greater than 3.2 μ m when ultrasonic testing is required for the outer circumferential surface), and the chamfer radius shall be 5-15mm.
Application area
Aerospace, aviation, military industry, light industry, chemical industry, textile, medical, petrochemical and other fields.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
