プロダクト細部
起源の場所: バオジ,中国
ブランド名: LIHUA
証明: ISO9001, TUV etc.
モデル番号: LH-TH
支払及び船積みの言葉
最小注文数量: 1個
価格: US dollar $15/kg--US dollar $35/kg
パッケージの詳細: 輸出のための合板箱
受渡し時間: 5-25の仕事日
支払条件: L/C,T/T,ウェスタンユニオン
供給の能力: 1ヶ月あたりの5000キログラム
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |

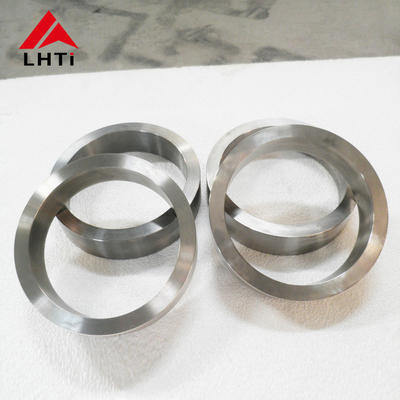

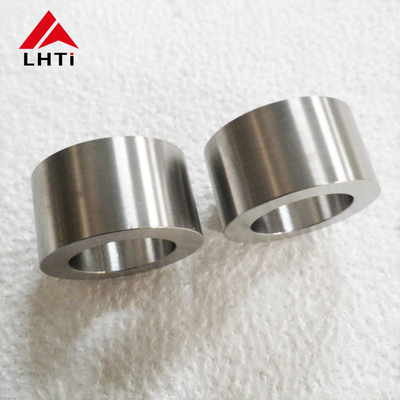

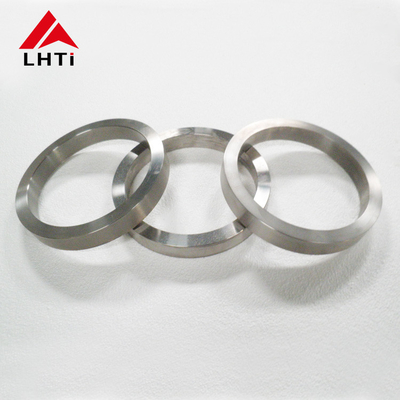

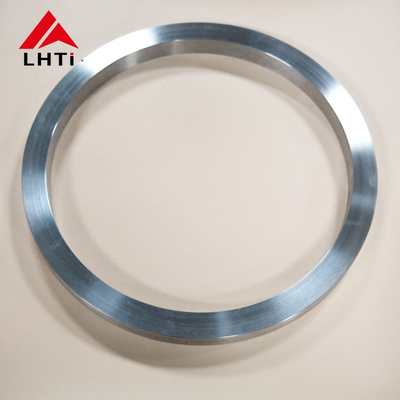

Gr 11 Titanium Forged Ring Titanium Forgings
High melting point (1660℃), Strong corrosion resistance,
High specific strength,
Good plasticity.
Forging and car light,
100% ultrasonic flaw detection
Gr 11 Titanium Forged RingWe produce quality hot forged rings in titanium alloy grade 1,2,3,5,7,11 & 12. We produce different types of hot forged rings in almost all sizes.We also provide passivation,quality coating further processing as per client's requirement.
We can provide titanium alloy seamless forged rings, pipe cutting rings, welded rings, flat cutting rings, rod processing rings.
The Gr 11 titanium forged ring can maintain the required strength at moderate temperatures. It can work for a long time at a temperature of 450~500℃.
Gr 11 titanium forged ring has plasticity, the elongation of high-purity titanium can reach 50-60%, and the area reduction rate can reach 70-80%.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
