| ブランド名: | LHTi |
| モデル番号: | チタン合金逆止弁 |
| MOQ: | 1個 |
| 価格: | 交渉可能 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給能力: | 月あたり5000個 |

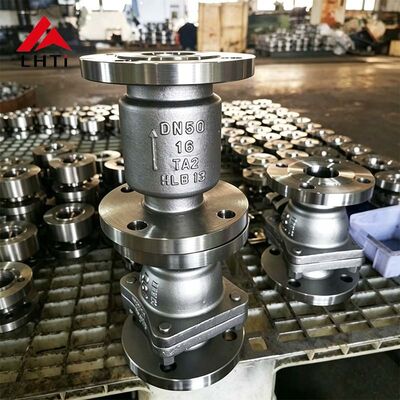

The titanium alloy check valve is a high-performance one-way valve designed to prevent medium backflow in pipelines, featuring outstanding corrosion resistance, reliable sealing and long service life. It is widely used in chemical, petrochemical, pharmaceutical and other industries with corrosive working conditions. Below are the main material specifications and installation dimensions for reference:
| Part Name | ZG1Cr18Ni9T / 304 CF8 | ZGOOCr18Ni10 / 304L CF3 | ZG1Cr18Ni12Mo2Ti / 316 CF8M | ZGOOCr17Ni14mO2 / 316L CF3M | WCB |
|---|---|---|---|---|---|
| Body/Cap | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | WCB |
| Valve Piece | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | 1Cr3 |
| Nominal Pressure (MPa) | Nominal Diameter DN (mm) | Dimensions (mm) | Nominal Pressure (MPa) | Nominal Diameter DN (mm) | Dimensions (mm) | ||
|---|---|---|---|---|---|---|---|
| L | H | L | H | ||||
| H42W-1.6 | 15 | 85 | 95 | H42W-2.5 | 80 | 200 | 195 |
| 20 | 95 | 105 | 100 | 210 | 230 | ||
| 25 | 105 | 115 | 125 | 275 | 275 | ||
| 32 | 150 | 135 | 150 | 300 | 300 | ||
| 40 | 160 | 145 | 200 | 380 | 360 | ||
| 50 | 170 | 160 | 250 | 430 | 425 | ||
| 65 | 180 | 180 | H42W-4.0 | 50 | 170 | 160 | |
| 80 | 200 | 195 | 65 | 180 | 180 | ||
| 100 | 210 | 215 | 80 | 200 | 195 | ||
| 125 | 275 | 245 | 100 | 210 | 230 | ||
| 150 | 300 | 280 | 125 | 275 | 270 | ||
| 200 | 380 | 335 | 150 | 300 | 300 | ||
| 250 | 430 | 405 | 200 | 380 | 375 | ||
| H42W-2.5 | 20 | 95 | 105 | 250 | 430 | 445 | |
| 25 | 105 | 115 | |||||
| 32 | 150 | 135 | |||||
| 40 | 160 | 145 | |||||
| 50 | 170 | 160 | |||||
| 65 | 180 | 180 |
