チタンボールバルブ
Created with Pixso.

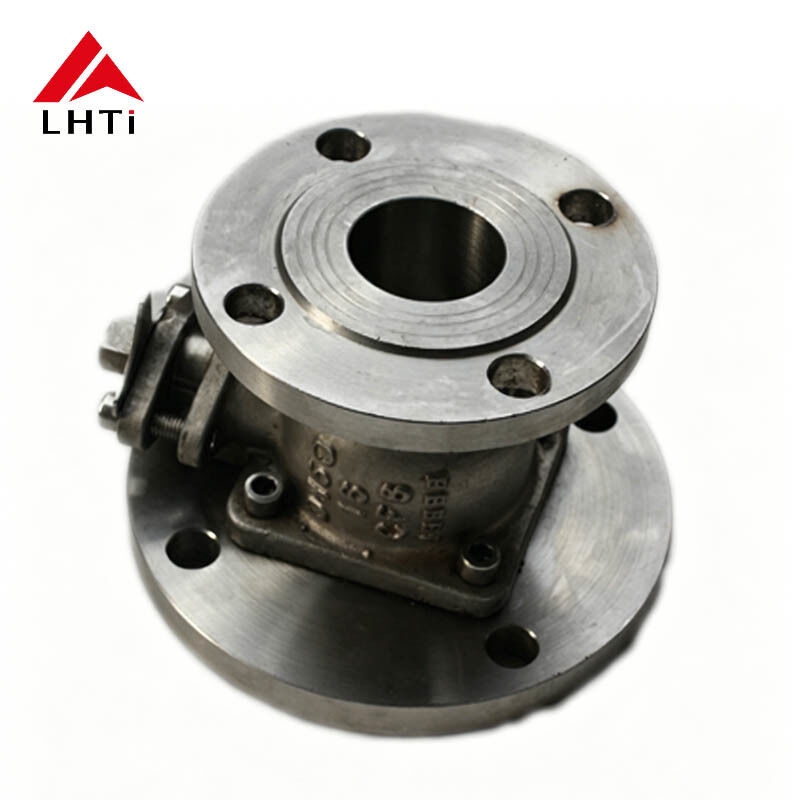

Titanium Lined Floating Ball Valve | Corrosion Resistant Discharge Valve

Titanium Lined Floating Ball Valve | Corrosion Resistant Discharge Valve

ブランド名: LHTi
モデル番号: チタンライニングフローティングボールバルブ
MOQ: 1個
価格: 交渉可能
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給能力: 月あたり5000個
詳細情報
起源の場所:
バオジ,中国
証明:
ISO9001
パッケージの詳細:
パライウッドケースまたはパレット,またはあなたの要求に応じて
供給の能力:
月あたり5000個
製品説明

Product Overview

Titanium alloy exhibits exceptional stability in neutral, oxidizing, and weakly reducing media, demonstrating excellent corrosion resistance to atmospheric environments, seawater, and chlorine-containing substances. However, in reducing media like hydrochloric acid, its corrosion resistance is relatively poor. To address this, titanium alloys can be enhanced through surface treatments such as ion nitriding and anodization. These processes significantly improve the corrosion resistance of titanium alloys in reducing media and increase their surface hardness to meet more demanding application requirements.

Specifications

  • Pressure Rating: PN1.0-4.0MPa, CLASS150-300Lb
  • Nominal Diameter: DN15-DN200 (1/2"-8")
  • Actuation: Manual, Electric, Pneumatic
  • Applicable Media: Oxidizing corrosive media

Design & Manufacturing Standards

  • Design: HGS-891, HG5-89-2, YTG45
  • Connection Flanges: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
  • Testing: JB/T9092, GB/T13927, AP1598

Main Materials

  • Body & Bonnet: TA1, TA2, TA10, Gr2, Gr3
  • Ball & Stem: TA1, TA2, TA10, Gr2, Gr3
