プロダクト細部
起源の場所: 中国
ブランド名: LHTi
証明: ISO9001:2015; TUV; SGS; BV
モデル番号: チタニウム リング
支払及び船積みの言葉
最小注文数量: 5 PCS
価格: USD12.00-35.00 per kg
パッケージの詳細: 船積み誘発の外傷に対する付加的な保護のための柔らかい泡が付いている合板箱
受渡し時間: 12-25の仕事日
支払条件: T/T,MoneyGram,L/C,ウェスタンユニオン,Paypal
供給の能力: 月あたり200000kg
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical engineering & Petrochemical technology |
Characteristic 1: |
Excellent corrosion resistance |
Surface: |
Bright polished |
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical engineering & Petrochemical technology |
Characteristic 1: |
Excellent corrosion resistance |
Surface: |
Bright polished |

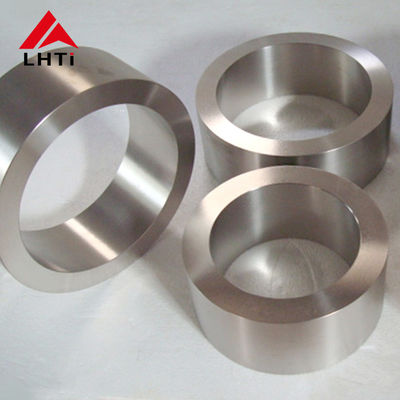

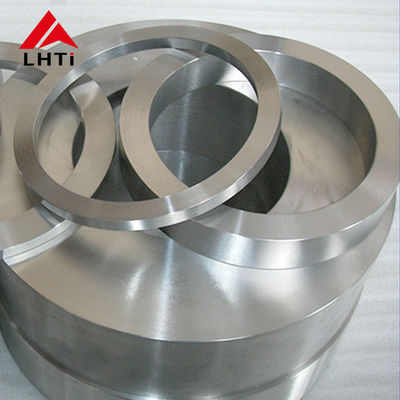

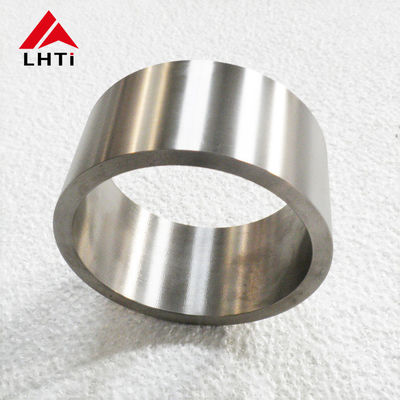

ASTM B381 Titanium Forged Rings
A astm b381 Titanium Forged rings was made in three steps. The process flows grains to the tangential and radial directions and provides mechanical properties such as strength, ductility, and impact and fatigue resistance to the workpiece.
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
